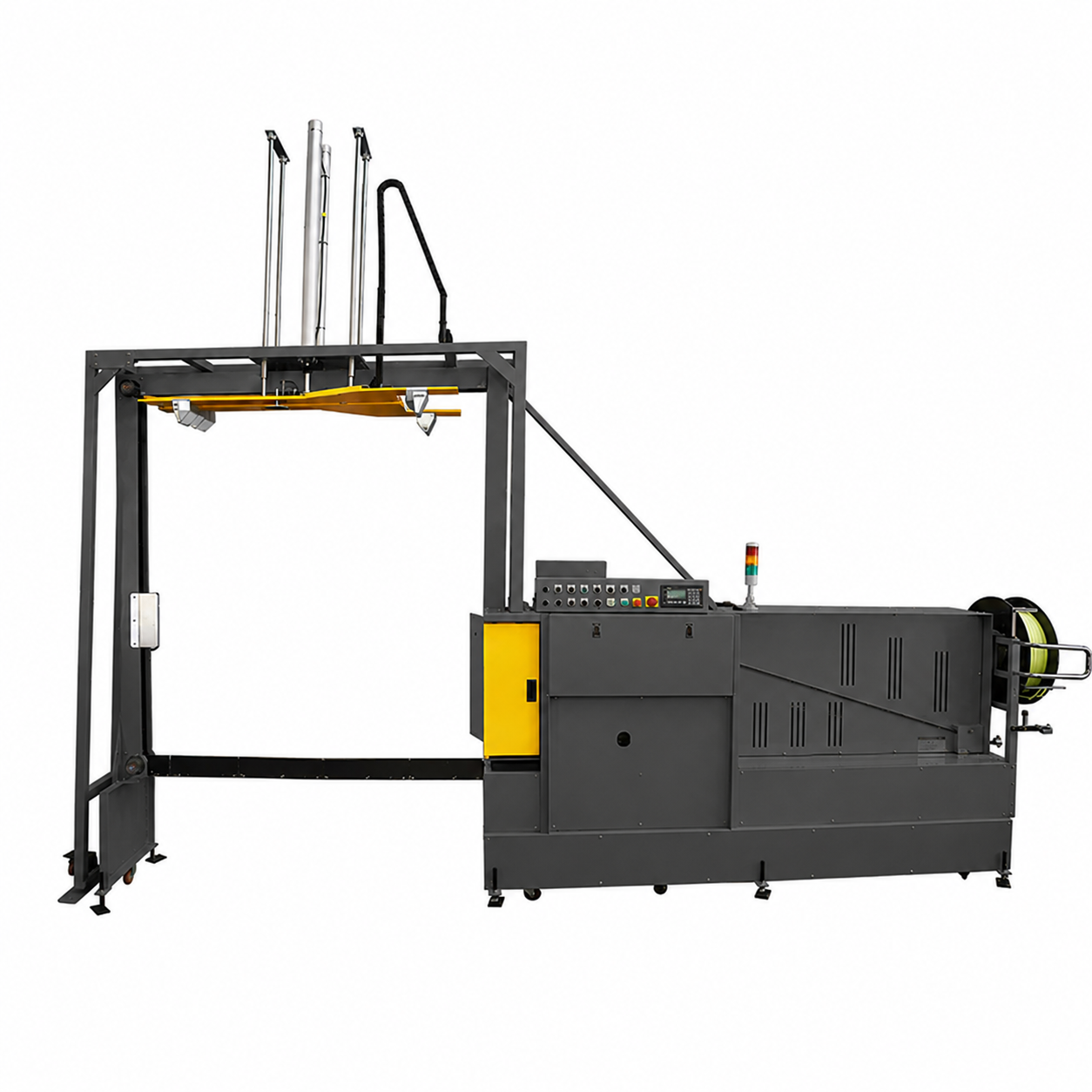

A-72YV
Vertical Strapping With Fixed Track
Side seal strapping system with indexing head & movable strap track.
Designed to strap & secure on pallet load with either polypropylene or polyester.
Provide pallet load good protection during transport.
Suitable for empty bottles & cans, food & beverage & logistics.
Designed to strap & secure on pallet load with either polypropylene or polyester.
Provide pallet load good protection during transport.
Suitable for empty bottles & cans, food & beverage & logistics.
Product detail
1. Features
- For PP & PET strap
- Commercial PLC control
- Index sealing head 250 or 400 mm stroke
- Auto detect for strap failure, short feeding & empty strap band
2. Options
- Top press platen
- HMI touch panel
- Variety of conveyors
- Dispenser adopts electromagnetic brake system
3. Specifications
Arch Size (W x H)
1800 x 1850 (Customize)
Cycle Time
22 sec. / strap
Max. Tension (kgs)
75
Strap Width (mm)
9,12,15.5,19 (Specified)
Sealing Method
Heating element
Sealing Position
Side
Reel I.D. (mm)
203 or 406 (Specified)
Min. Conveyor Height (mm)
430
Power Supply
220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw)
1.5
Compressed Air
5 ~ 6 bars for top press platen
Layout dimension (L x W x Hmm)
4937 x 870 x 2725
