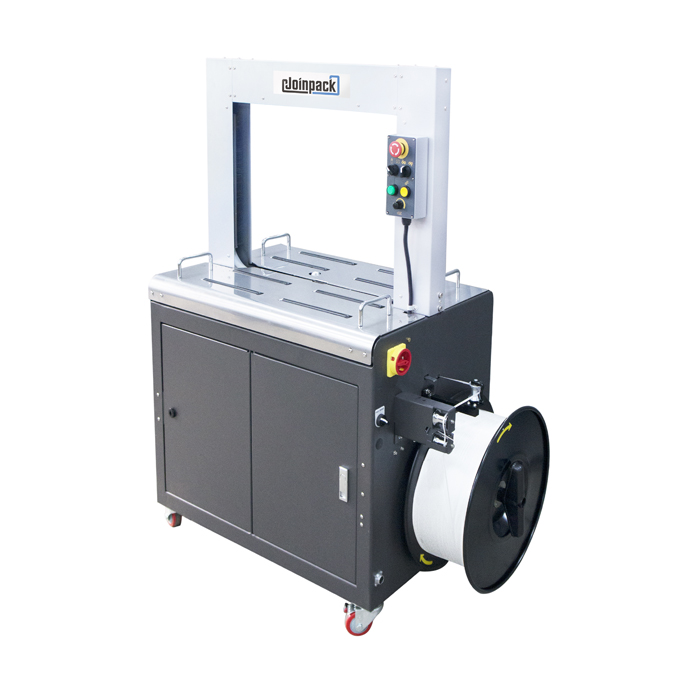

A-85N

AC Motor Driven Advanced Strapping Machine

  • A-85N is designed for various applications and able to work with different strap widths, wide tension range as well as high strapping speed with AC motor driven.
  • Diversity of assist functions is all as standard equipped.
Download Brochure Inquire Now

Product detail

1. Features

  • Looping ejector
  • Short feeding sensor
  • Coil end eject system
  • Electronic tension control
  • Waist auto loading system
  • Run on 5,6,9,12,15 mm strap
  • Advanced performance ( over 40 straps/min.)

2. Options

  • Top press – P
  • Various arch sizes

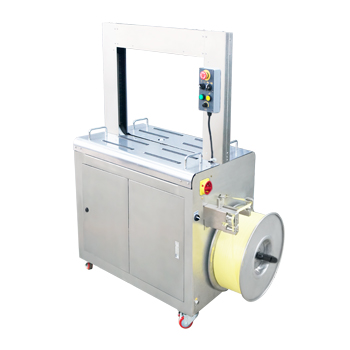

  • Stainless steel housing (A-85M)

3. Specifications

Speed (straps / min)
40
Strap Width (mm)
5,6,9,12,15 specified
Tension Range for 5,6mm
3~30kgs
Tension Range for 9,12,15mm
5~70kgs
Standard Arch (W x H mm)
650 x 500
Motor
AC
Sealing Method
Heating element
Table Height (mm)
805
Power Supply
110/220/230/240V, 50/60Hz, 1PH
220/230/380/415/440V, 50/60Hz, 3PH
Power Consumption (kw)
1.2
Layout Dimension (L x W x Hmm)
1230 x 580 x 1430

*Specification subject to change without notice

Other Products

A-85N
AC Motor Driven Advanced Strapping Machine

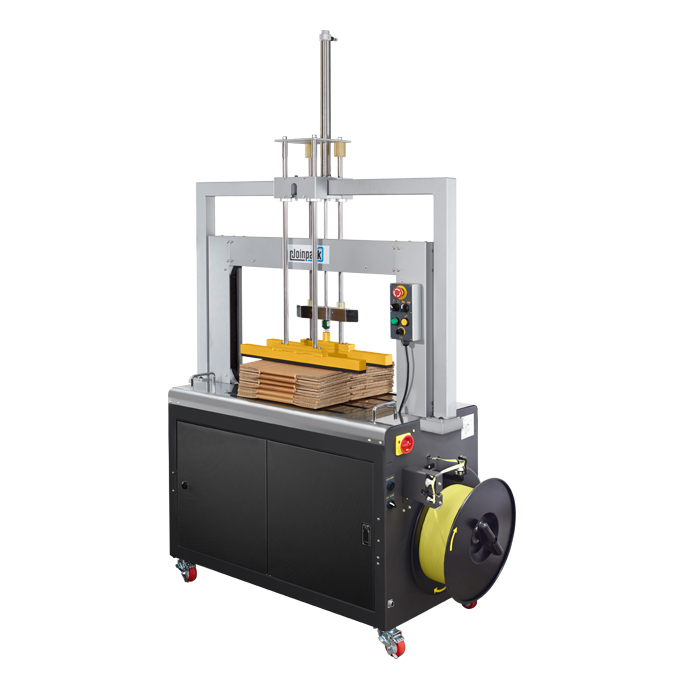

A-88N
