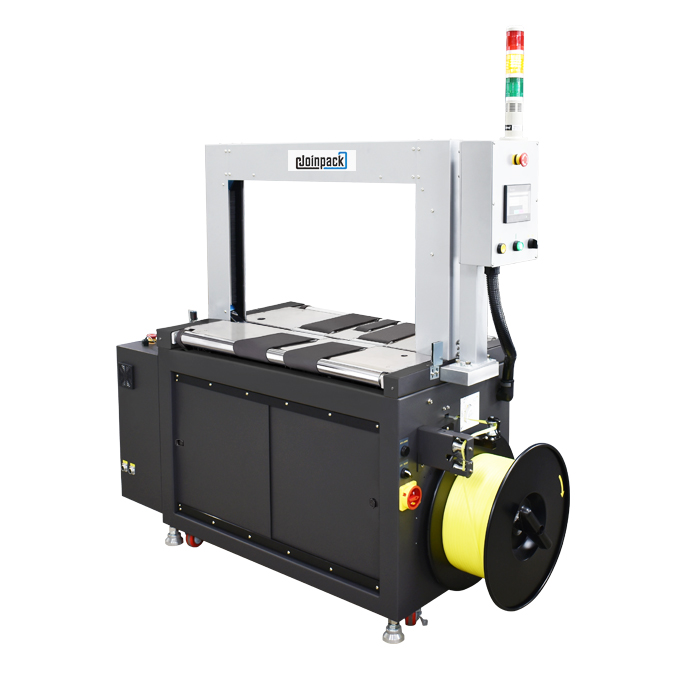

A-85NAR
Roller Driven Tabletop With AC Motor
- A-85NAR is designed for various in-line applications.
- A-85NAR can work with different strap widths, provide wide tension range as well as high strapping speed with AC motor driven.
- Diversity of assist functions is all as standard equipped.
Product detail
1. Features
- Roller driven
- Looping ejector
- Short feeding sensor
- Coil end eject system
- Waist auto loading system
- Conveyor speed adjustable
- Upstream and downstream interlock
- Run on 5,6,9,12,15 mm strap (specified)
- PLC control with HMI touch screen panel
2. Options
- Stainless steel housing
- Various arch sizes available
3. Specifications
Speed (straps / min)
40
Strap Width (mm)
5,6,9,12,15 specified
Tension Range for 5,6mm
3~30kgs
Tension Range for 9,12,15mm
5~70kgs
Standard Arch (W x H mm)
850 x 500
Motor
AC
Sealing Method
Heating element
Table Height (mm)
805
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw)
1.2
Layout Dimension (L x W x Hmm)
1230 x 580 x 1430
