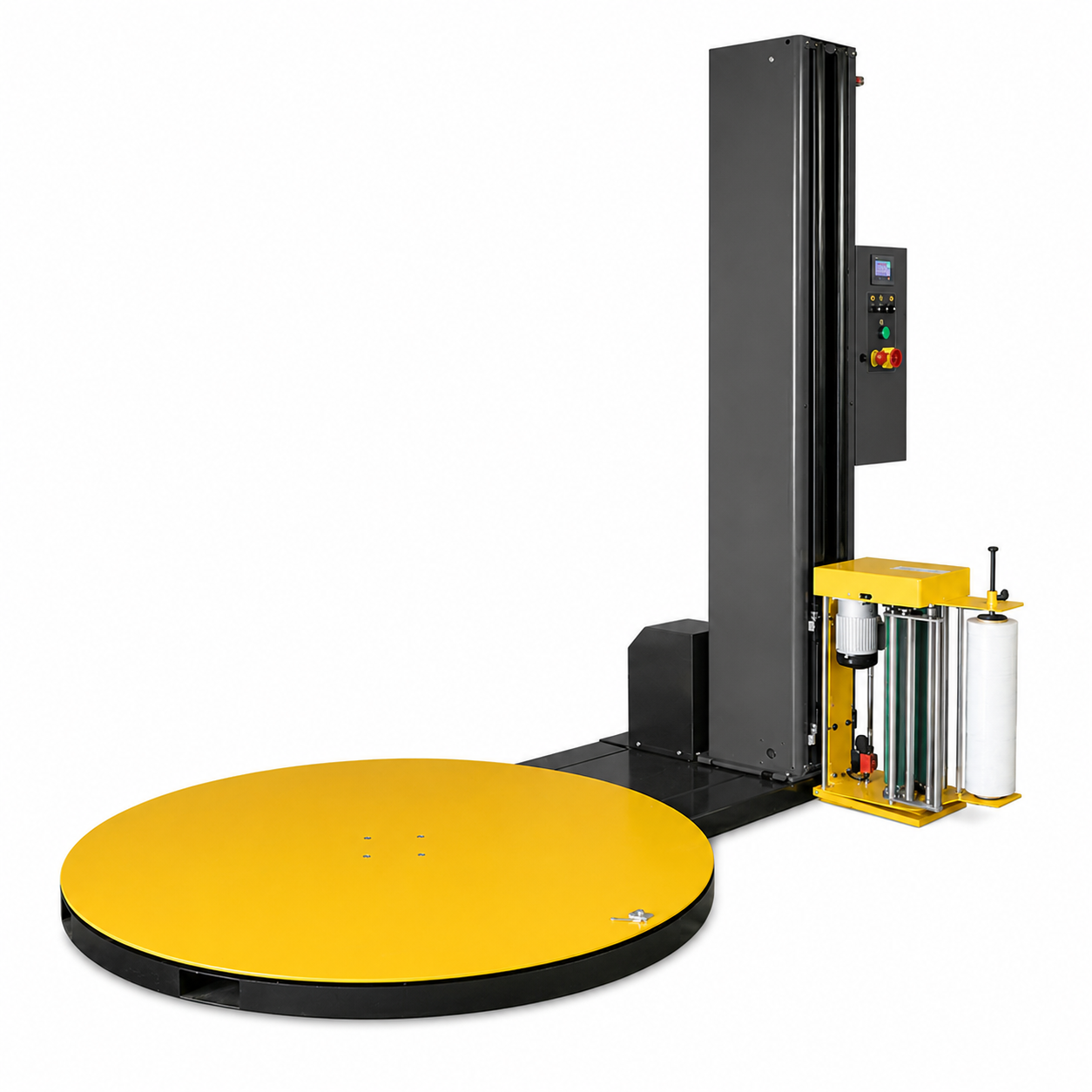

ALPHA-2000
Turntable Wrapper For General Applications
- Top sheet applied
- Middle reinforcement

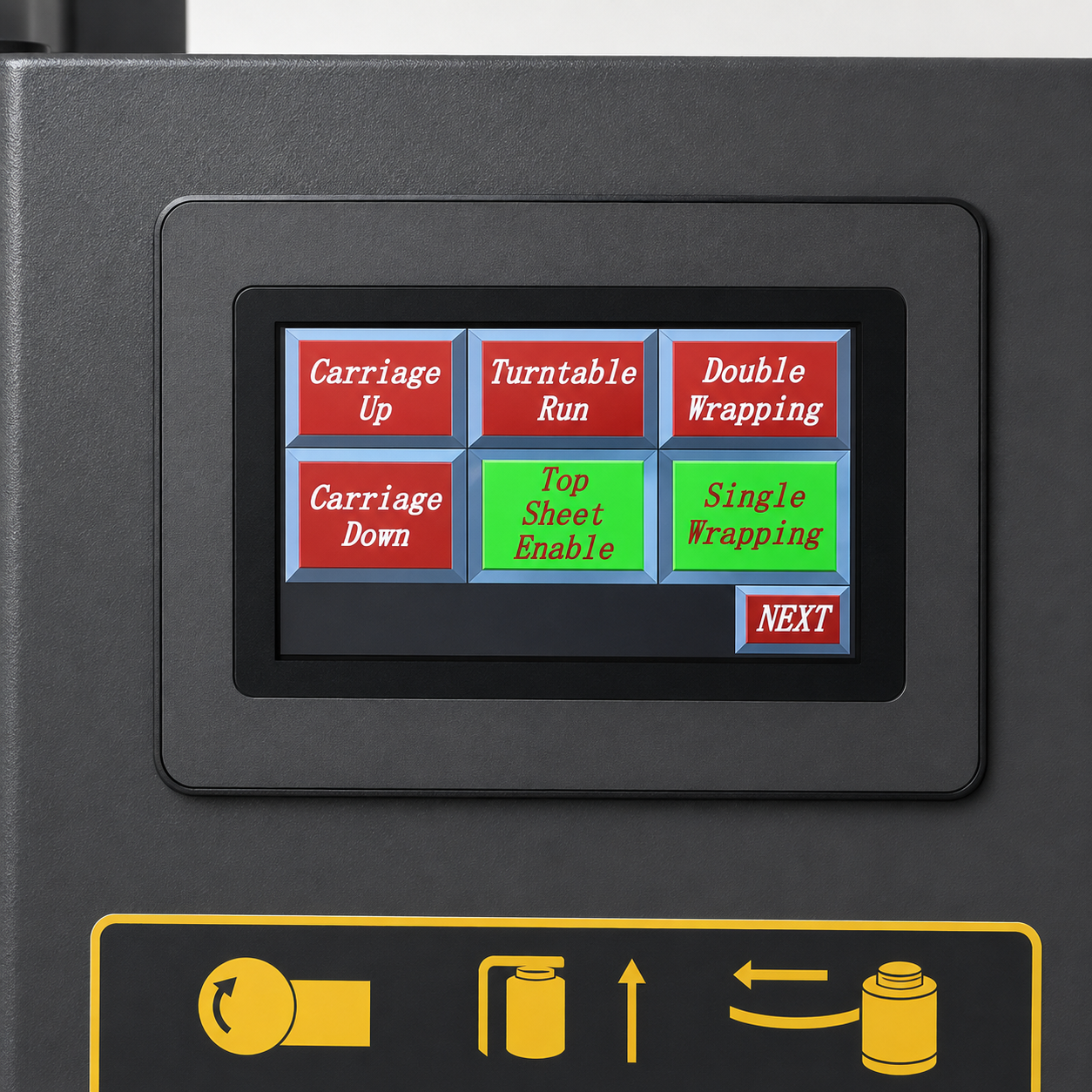

- User friendly HMI touch panel
- 3 auto wrapping programs built-in
- Auto film tear-off (without pre-stretch)

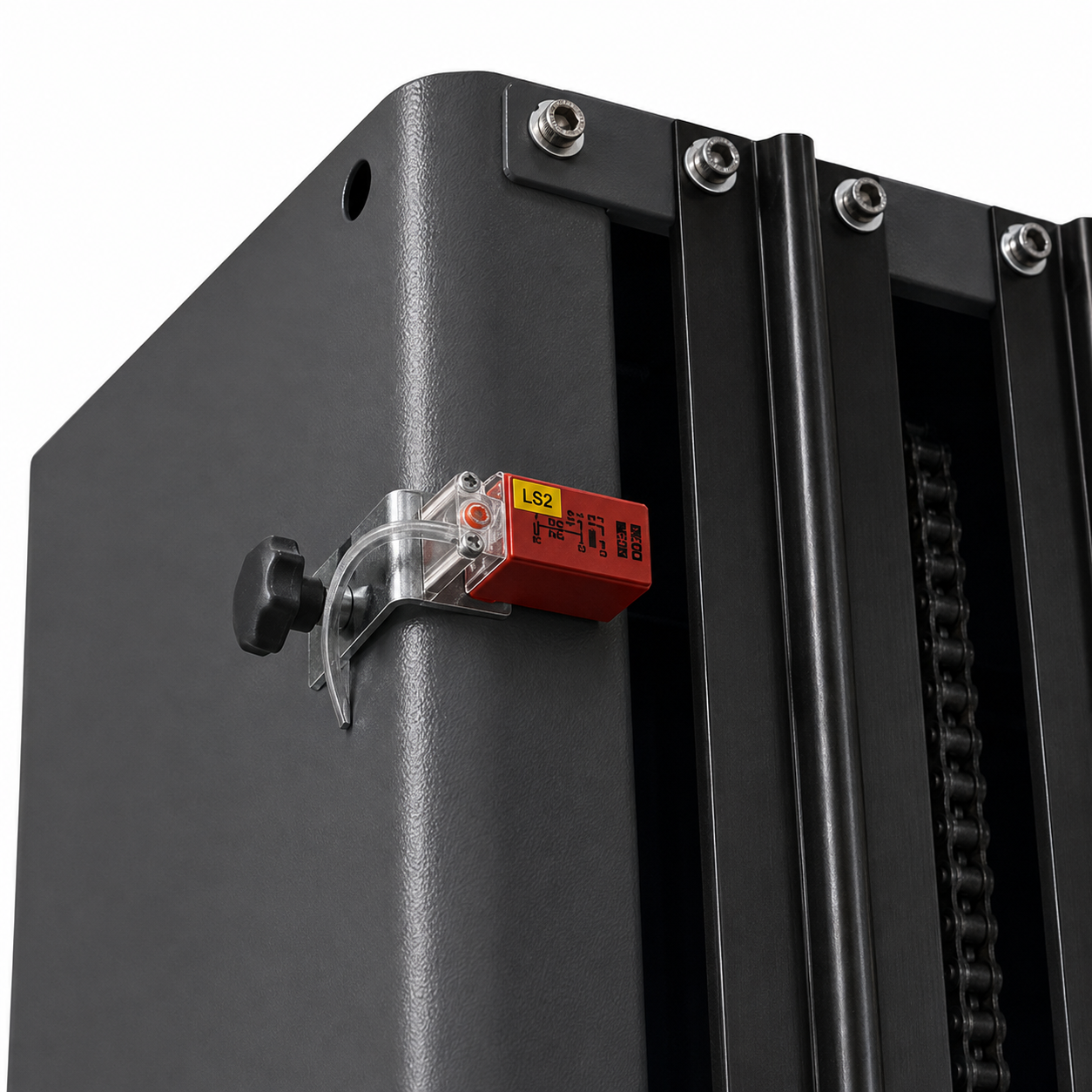

- Proximity sensors for loading height detect
- Turntable and film carriage speeds adjustable
- Turntable soft-start, soft-stop and home position

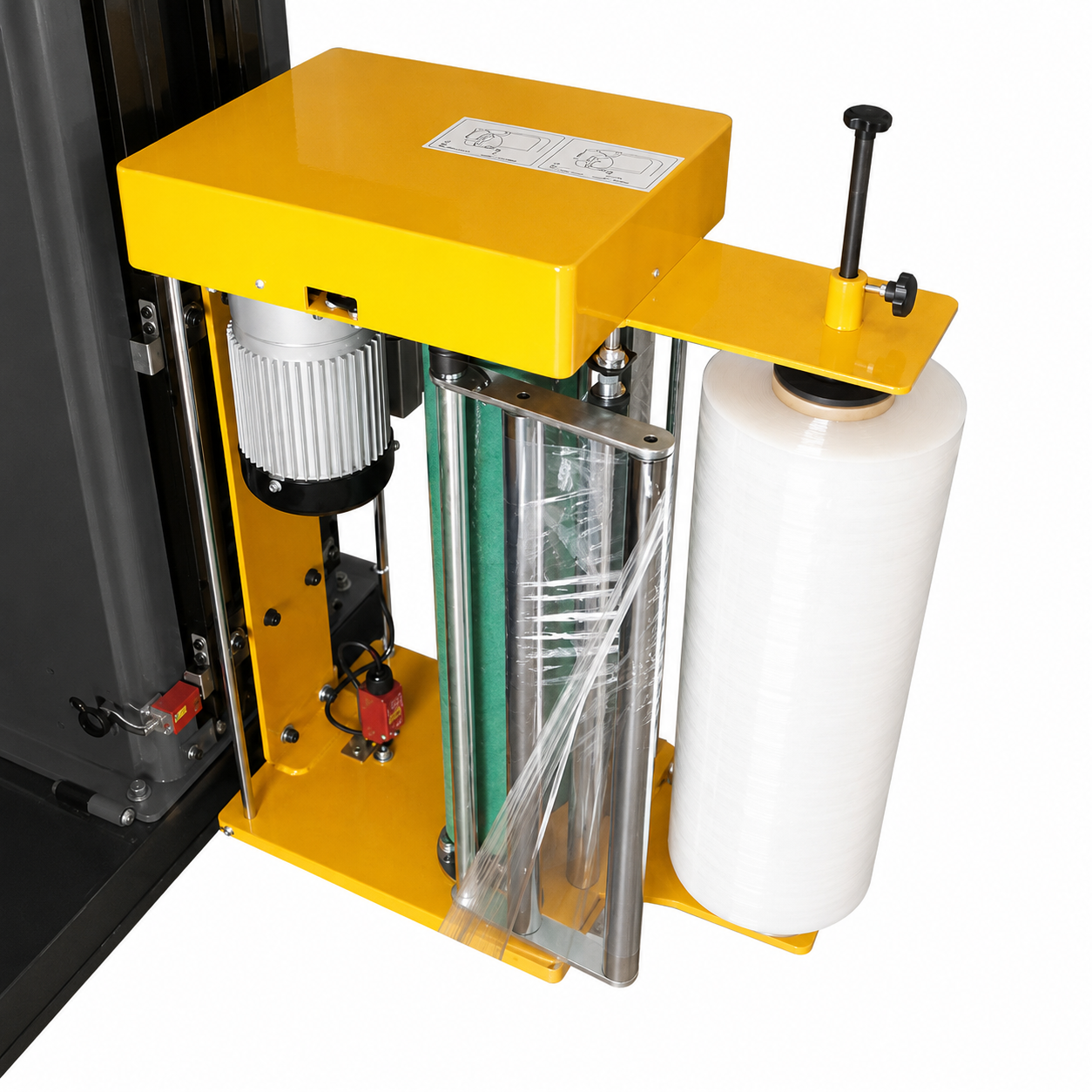

- Film tension adjustable ( Electromagnetic brake system)
Product detail
1. Features
- Top press
- Access ramp
- Various column height
- Pre-stretch system 50%,100%,150%,200%(specified)
- Note: 100% means 1M to 2 M
2. Options
- Stainless steel housing
- Various arch sizes available
3. Specifications
Turntable Dia. (mm)
1500 / 1800
Wrapping Height (mm)
2100 / 2400
Max. Pallet Weight (kg)
2000
Turntable Speed (R.P.M.)
5~15
Film Carriage Speed (m/min.)
2~5
Film Roll I.D. (mm)
φ76x W 500
Power Consumption (kW)
1.4
Power Supply (50/60Hz)
110/220/230/240V,1PH 220/230/380/415/440V,3PH
Dimension (L x W x H mm)
2639 x 1500 x 2374
Machine Net Weight (kg)
660
Pre-Stretch Ratio (50%,100%,150%,200%)
Specified
