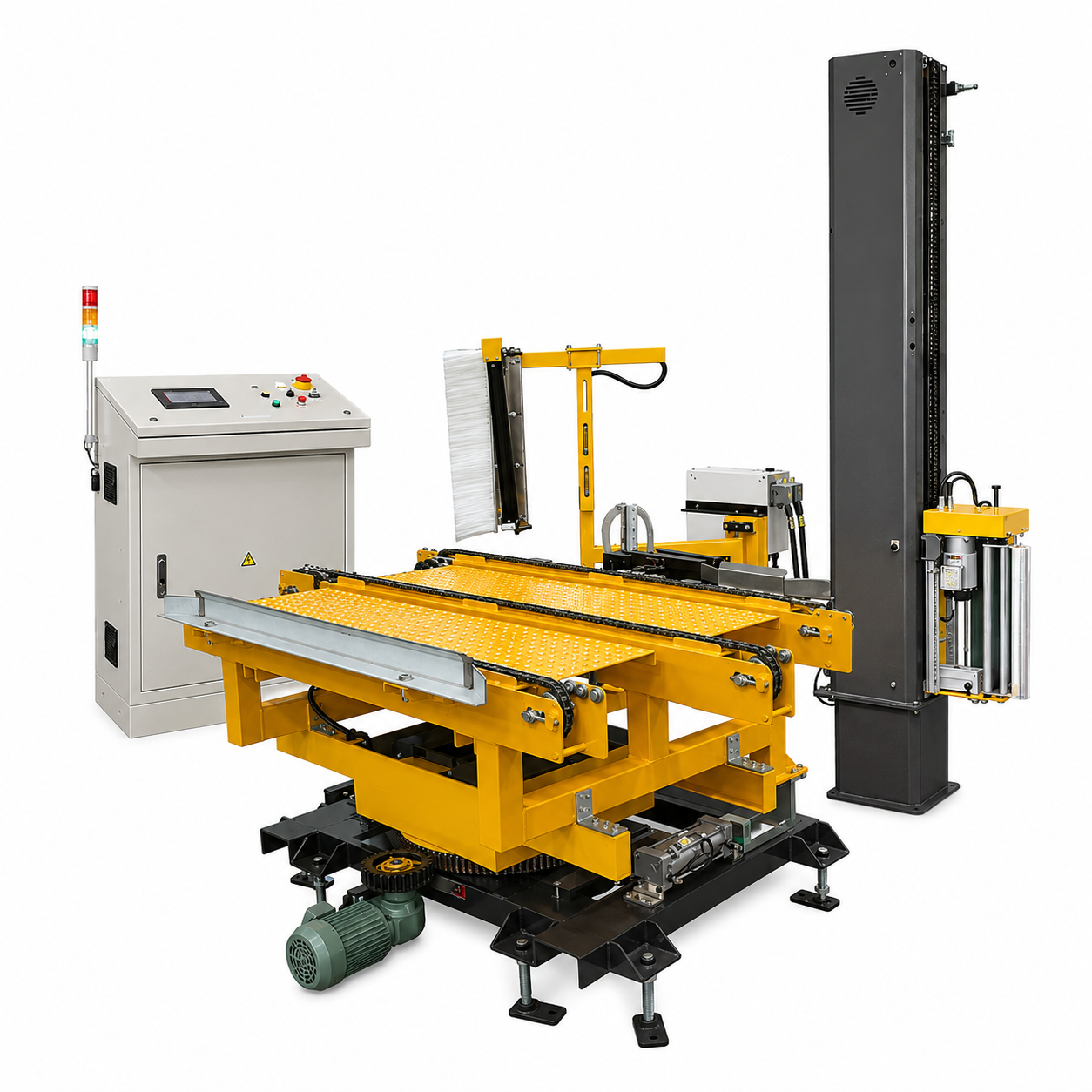

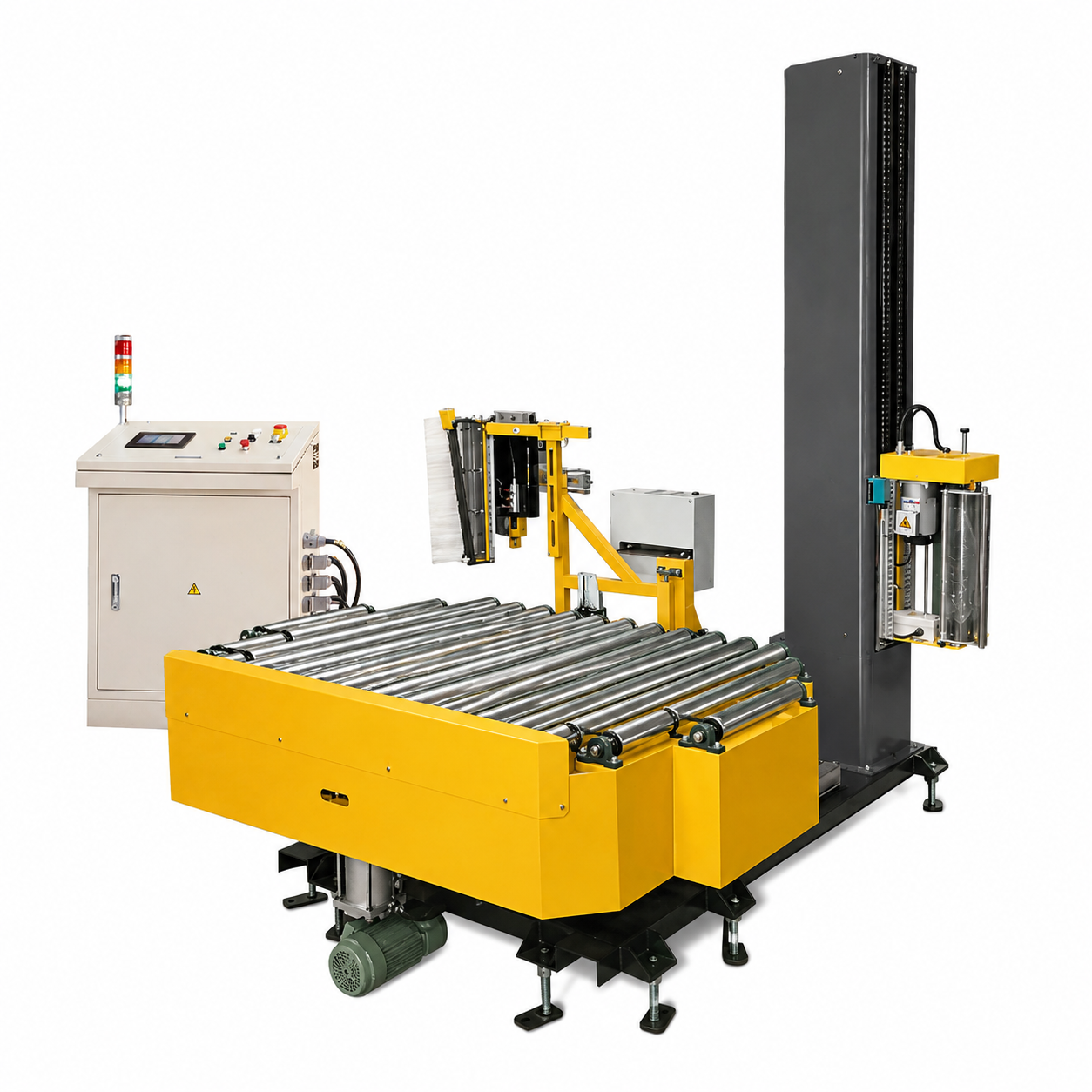

ALPHA-HCA
Turntable Type For Heavy Load
To integrated with in-feed & out-feed power conveyors as fully auto in-line wrapping system.

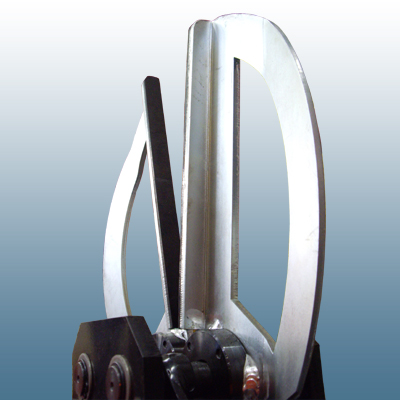

Equipped with auto film clamp, cut & wiper system makes wrapper ready for next pallet. Automatically complete film wrapping on pallet loads. Provide consistent wrapping and professional looking loads.

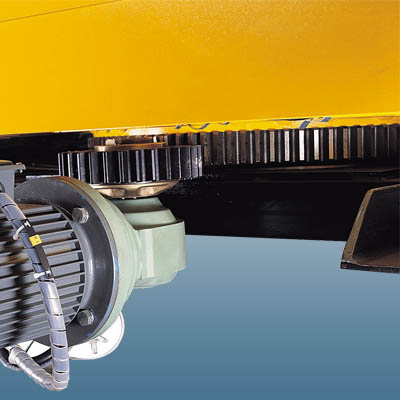

Frame, turntable adopts strong steel structure and equipped with heavy duty ring bearing. Reliable for longevity and easy to maintain.
Soft start, stop & home position to prevent load displacement at the beginning & the end.
Quick connector plug in & out, easy to install. Comprehensively correspondence with variety of applications.
Product detail
1. Features
- Soft star and stop.
- Tension to load adjustable.
- 3 dimensional reel wrapping.
- Film carriage speed adjustable.
- Package roll ejecting out system.
- Electronic magnetic brake system.
- 2 various wrapping programs, user friendly.
- 2 in 1 machine for both reel product & standard pallet load.
2. Options
- Power pre-stretch system. 50%, 100%, 150%, 200%(specified).
- Note:50% mean 1M pre-stretched to 1.5M
3. Specifications
Turntable Dia. (mm)
2000 (customize)
Wrapping Height (mm)
2100 / 2400
Max. Pallet Weight (kg)
Customize
Turntable Speed (R.P.M.)
2~15
Film Carriage Speed (m/min.)
2~5
Film Roll I.D. (mm)
φ76x W 500
Power Consumption (kW)
2.3
Power Supply (50/60Hz)
220/230/380/415/440V,3PH
Dimension (L x W x H mm)
3190 x 2000 x 2398
Machine Net Weight (kg)
1500
Pre-Stretch Ratio (50%,100%,150%,200%)
Specified
