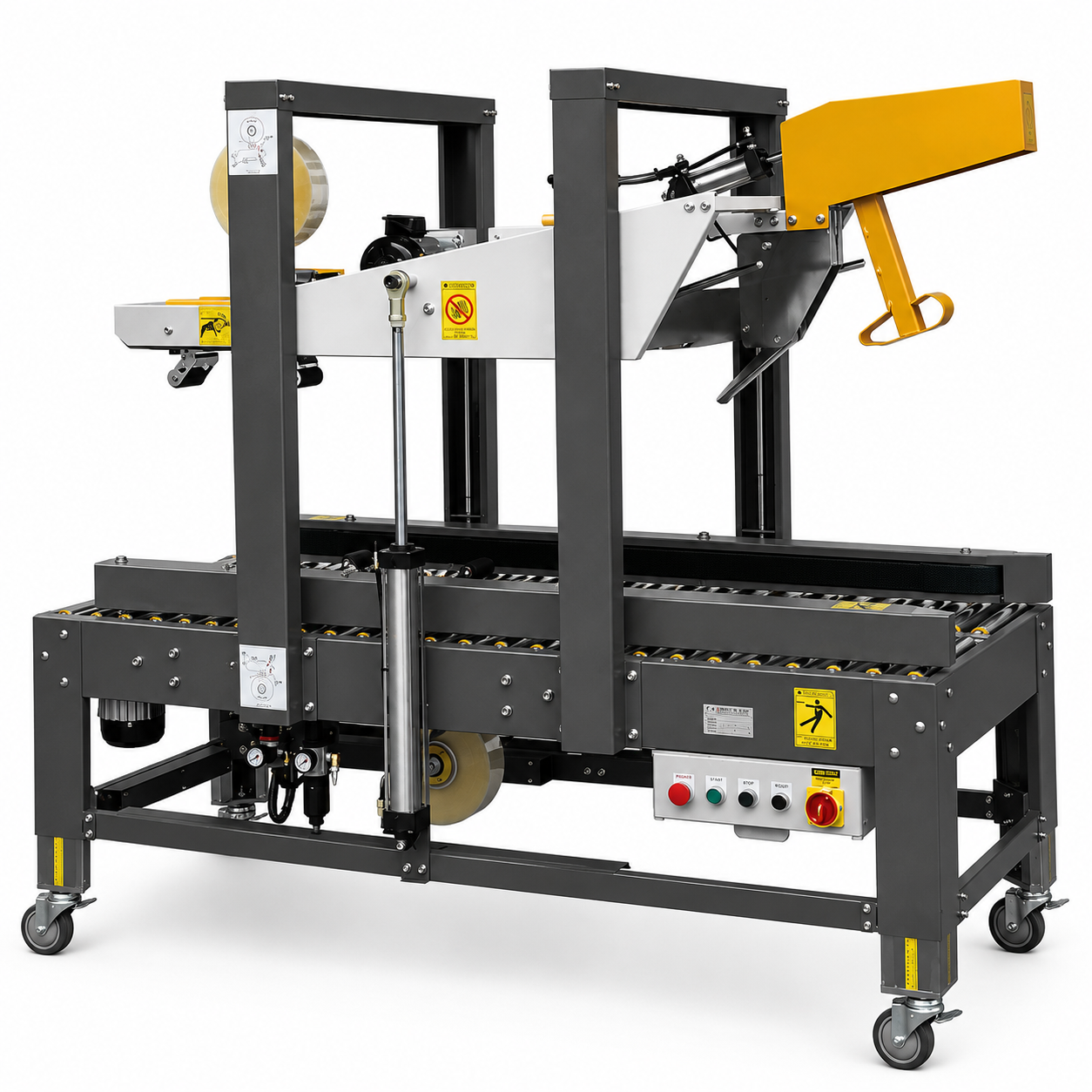

JP-503A
Flaps Folding & Tape Sealing
Auto top flaps folding makes box sealing more convenient & fast.
Auto adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.
Auto adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.
Product detail
1. Features
- Top flaps folding device
- For random box
- Side belt driven
- Sturdy mast & frame
- Taping heads seal box smooth & accurate
- Table height adjustable from 570~770 mm
2. Options
- Safety fence
- Stainless steel housing #304
- Detect for tape cutting failure, low & no tape roll
3. Specifications
Sealing Size (L x W x Hmm)
Max. 500 x 500 x 500 Min. 280 x 135 x 150 for 2”tape 280 x 150 x 150 for 3”tape
Tape Width
2” or 3” (specified)
Table Height (mm)
570~700
Belt Speed
20 M/per min. at 60Hz
Air Consumption
6 kgs/cm2
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm)
1985 x 950 x 1625
