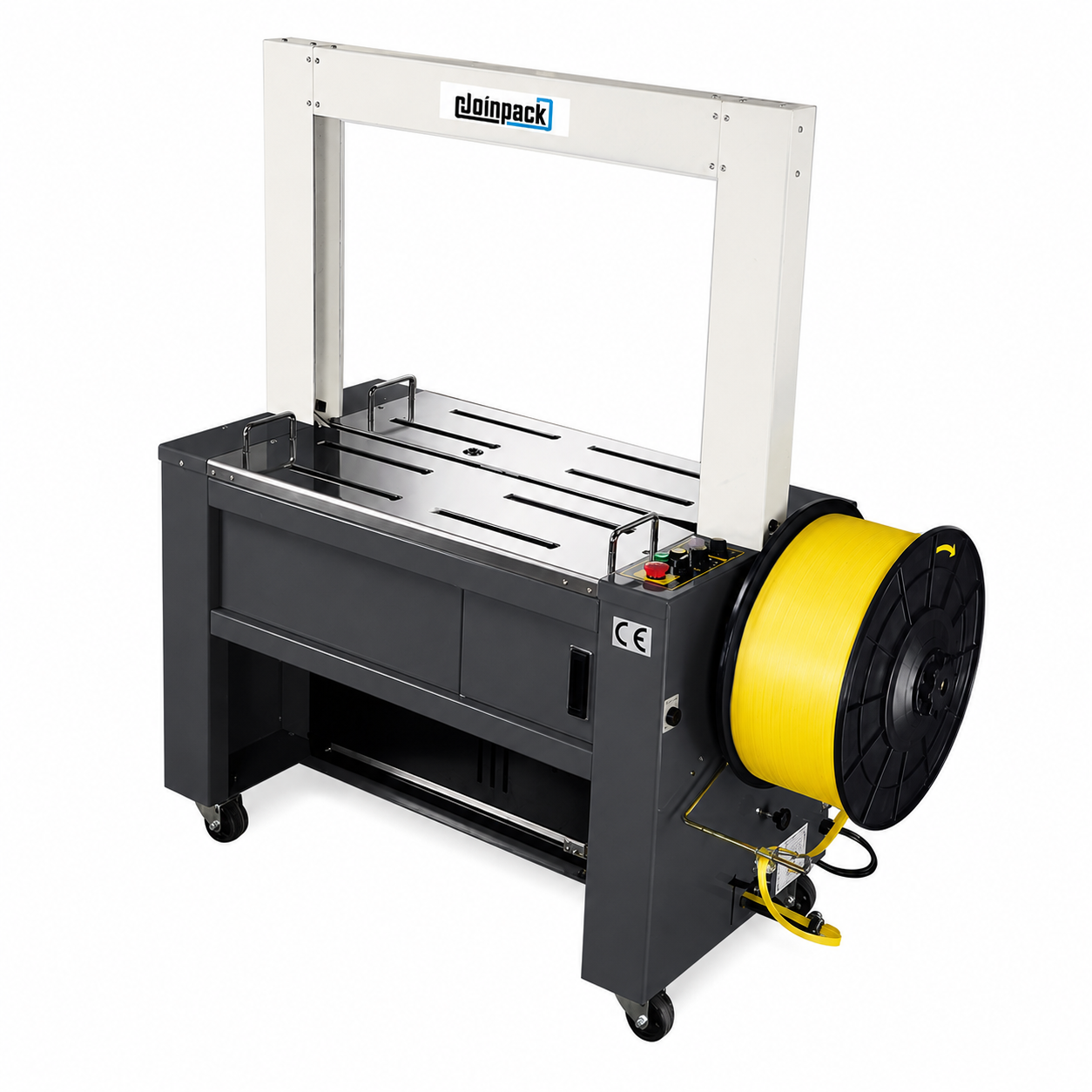

A-93
General Application Bottom Seal Automatic Strapping Machine
- A-93 is designed for general applications with its reputation since years. Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages. Tension range between 15-70 KGs and cycle speed 24 straps/min performed thru AC motor driven.
- Available to equip with various unique options to perform advanced functions.
Product detail
1. Features
- Hinged table top
- Proximity cam switch
- Instant heating system
- Modular arch component
- Weld cooling time adjustable
- Available for both PP& PET strap ( specified)
- Digital regulator in PCB with LED show I/O status
2. Options
- Looping ejector
- Auto loading system
- Short feeding sensor
- Coil end strap ejecting out
- Electronic tension control system
- Stainless steel housing available : A-93M
3. Specifications
Speed (straps / min)
24
Strap Width (mm)
9,12,15 specified
Tension Range
15~70kgs
Standard Arch (W x H mm)
850 x 600
Motor
AC
Sealing Method
Heating element
Table Height (mm)
805
Power Supply
110/220/230/240V, 50/60Hz, 1PH
220/230/380/415/440V,50/60Hz, 3PH
220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw)
1.0
Layout Dimension (L x W x Hmm)
1440 x 600 x 1530
*Specification subject to change without notice
