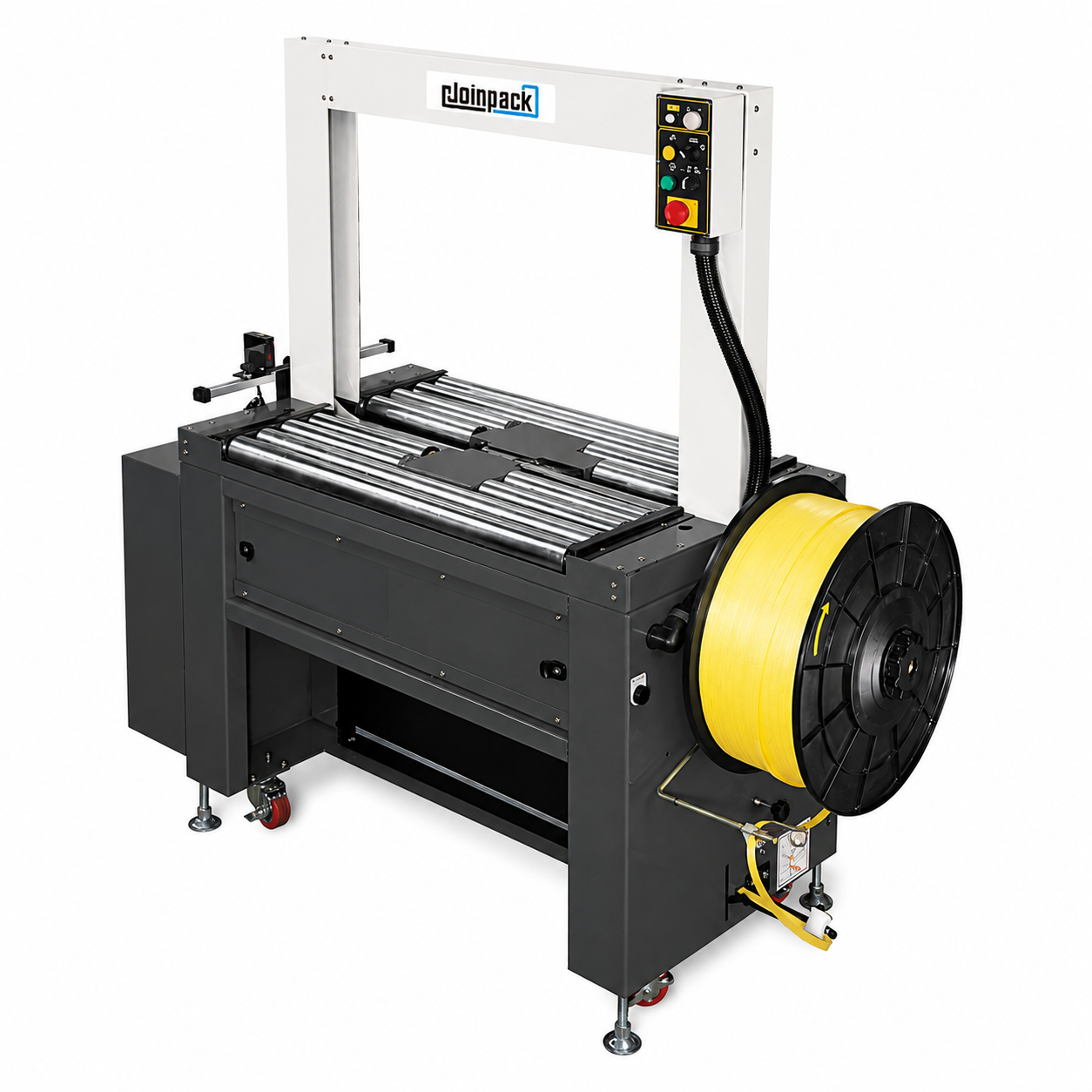

A-93AR
Fully Automatic Strapper with Roller Driven Table
- Ideal designed to integrate by IN-LINE with other machines for general industry
- Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages.
Tension range between 15~70 KGs and cycles speed 24 straps. - Available to equip with various unique options to perform advanced functions
Product detail
1. Features
- Proximity cam switch
- Instant heating system
- Stainless-clad steel roller
- Weld cooling time adjustable
- Hinged power roller driven table top
- Up-stream and down-stream interlock
- Heating temperature from 230℃~460℃ for PP & PET straps
2. Options
- Looping ejector
- Top press function
- Auto loading system
- Stack light with buzzer
- Coil end strap ejecting out
- Stainless steel housing. (SUS#304)
3. Specifications
Speed (straps / min)
24
Strap Width (mm)
9,12,15 specified
Tension Range for 5,6mm
15~70kgs
Tension Range for 9,12,15mm
10~40 adjustable
Standard Arch (W x H mm)
850 x 600
Motor
AC
Sealing Method
Heating element
Table Height (mm)
805
Power Supply
110/220/230/240V, 50/60Hz,1PH 220/230/380/415/400V, 50/60Hz, 3PH
Power Consumption (kw)
1.0
Layout Dimension (L x W x Hmm)
1440 x 600 x 1530
