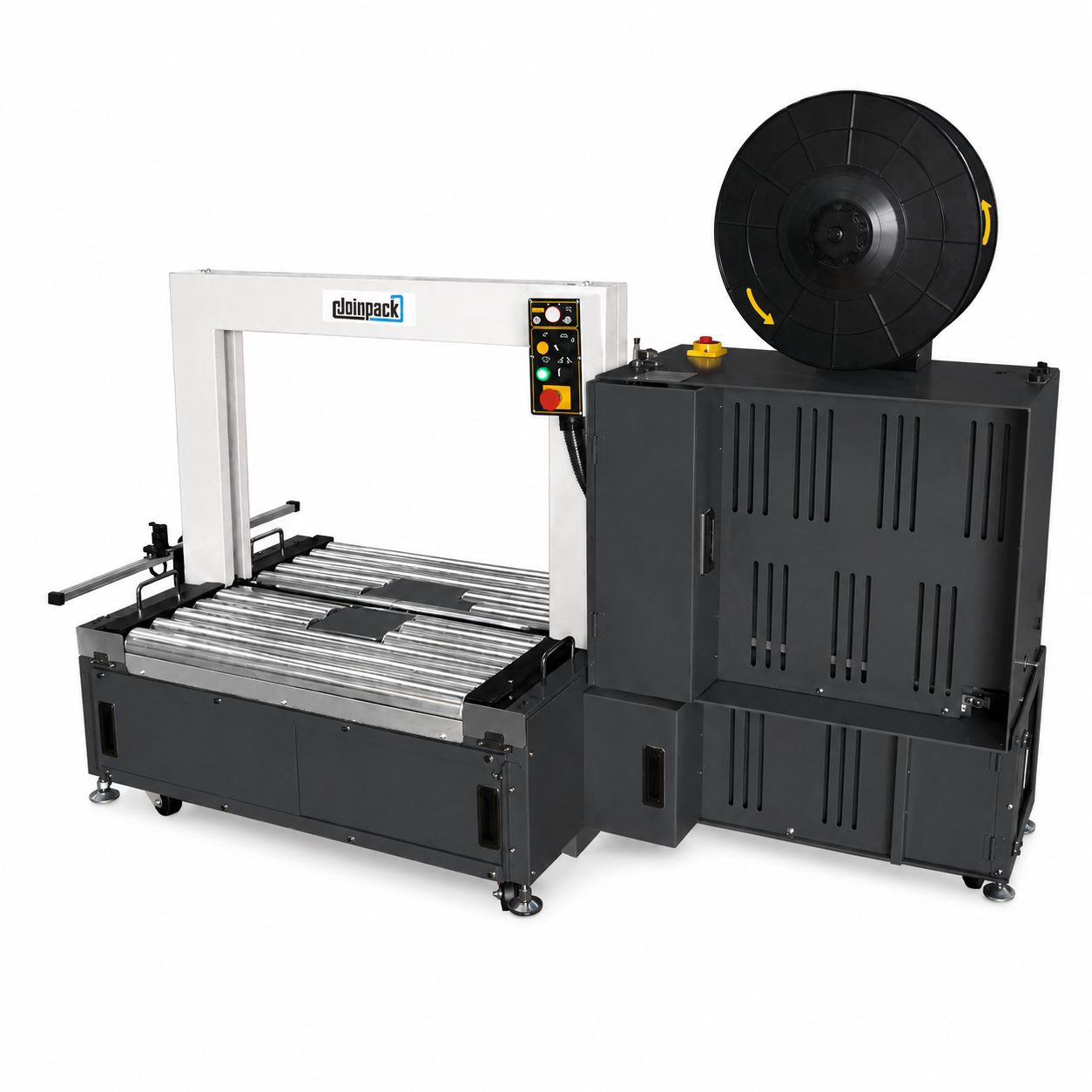

A-93LAR
Fully Automatic Roller Driven With Low Table
- Ideal for heavy, bulky package.
- Lower table height allows itself to integrate with low height conveyers. Ideal designed to integrate by IN-LINE with other machines for general industry.
- Various arch size combination and workability of different strap widths between 9 ~ 15 mm can serve all kinds of packages.
- Tension range between 15~70 KGs and cycles speed 24 straps.
- Available to equip with various unique options to perform advanced functions.
Product detail
1. Features
- For PP & PET straps
- Proximity cam switch
- Instant heating system
- Heavy duty steel rollers
- Weld cooling time adjustable
- Hinged power roller driven table top
- Up-stream and down-stream interlock
- Heating temperature from 230℃~460℃
2. Options
- Top press
- Looping ejector
- Auto-loading system
- Stracker light with buzzer
- Coil end strap ejecting out
- Stainless steel housing (SUS#304)
3. Specifications
Speed (straps / min)
24
Strap Width (mm)
9,12,15 specified
Tension Range for 5,6mm
15~70kgs
Tension Range for 9,12,15mm
10~40 adjustable
Standard Arch (W x H mm)
850 x 600
Motor
AC
Sealing Method
Heating element
Table Height (mm)
440
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw)
1.0
Layout Dimension (L x W x Hmm)
1925 x 705 x 1480
