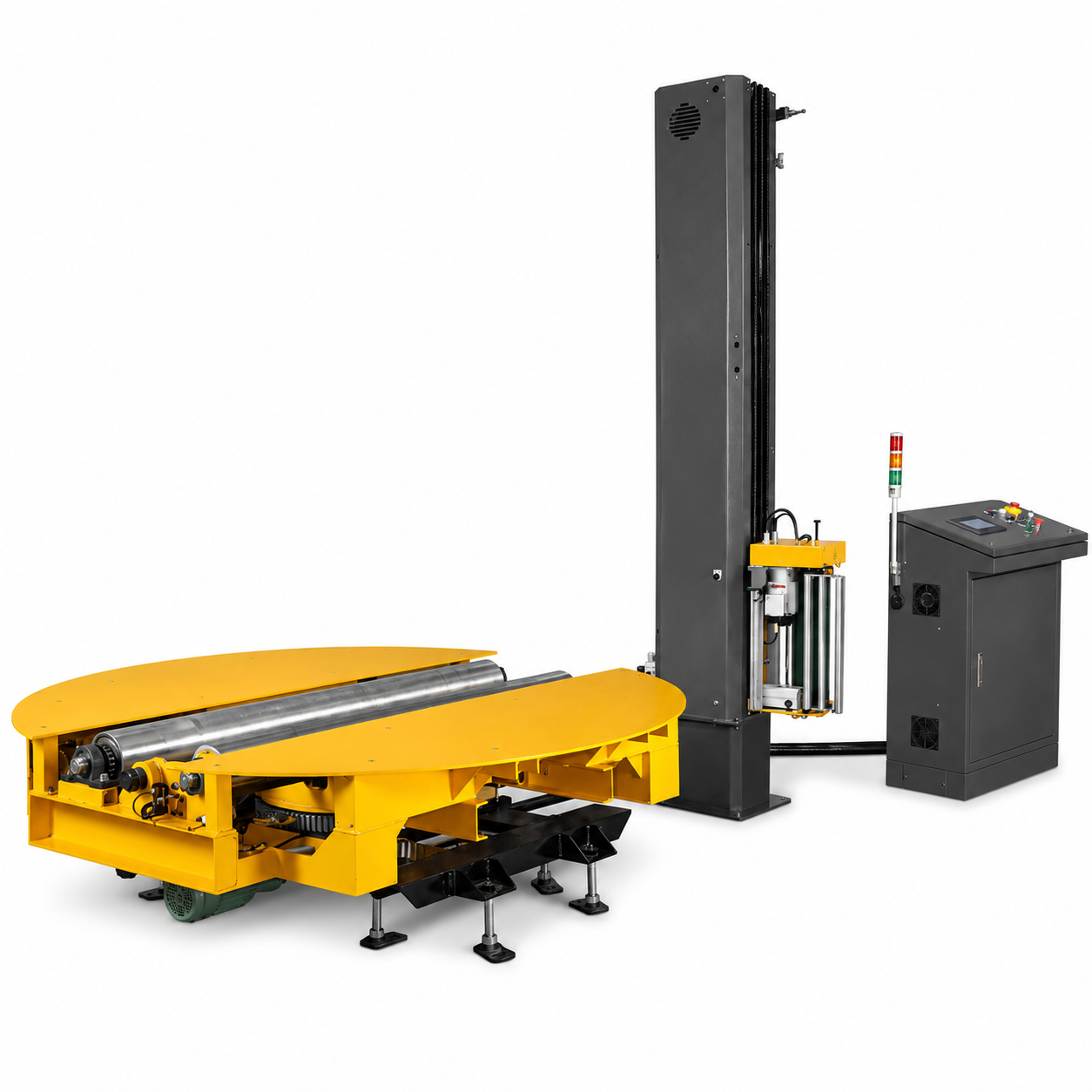

ALPHA-HR
3 Dimensional Reel Wrapping For Roll Product
Specialty designed for wrapping roll products.

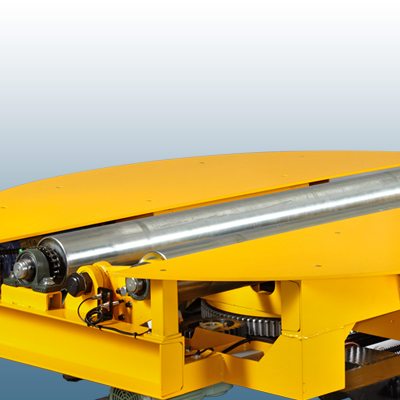

Heavy duty steel rolls plus turntable rotation simultaneously, wrapping machine creates a 3 dimensional wrapping and completely provides a good protection on roll products.

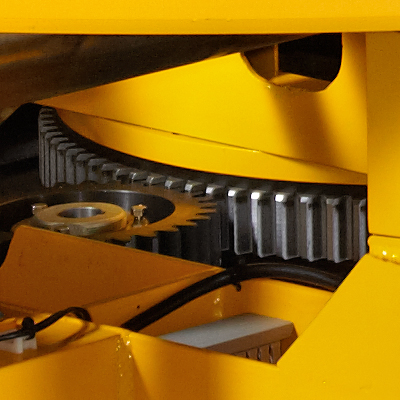

Frame, turntable adopts high steel structure and equipped with heavy duty ring type bearing. Reliable for longevity and easy to maintain.
Soft start, stop & home position to prevent roll displacement at the beginning & the end.
Quick connector plug in & out, easy to install. Comprehensively correspondence with variety of applications.
Product detail
1. Features
- Soft star and stop.
- Tension to load adjustable.
- 3 dimensional reel wrapping.
- Film carriage speed adjustable.
- Package roll ejecting out system.
- Electronic magnetic brake system.
- 2 various wrapping programs, user friendly.
- 2 in 1 machine for both reel product & standard pallet load.
- Electronic magnetic brake system.
2. Options
- Power pre-stretch system. 50%, 100%, 150%, 200%(specified).
- Note:50% mean 1M pre-stretched to 1.5M
3. Specifications
Turntable Dia. (mm)
2000 (customize)
Wrapping Height (mm)
2100 / 2400
Max. Pallet Weight (kg)
Customize
Turntable Speed (R.P.M.)
2~15
Film Carriage Speed (m/min.)
2~5
Film Roll I.D. (mm)
φ76x W 500
Power Consumption (kW)
2.3
Power Supply (50/60Hz)
220/230/380/415/440V,3PH
Dimension (L x W x H mm)
3190 x 2000 x 2398
Machine Net Weight (kg)
1500
Pre-Stretch Ratio (50%,100%,150%,200%)
Specified
