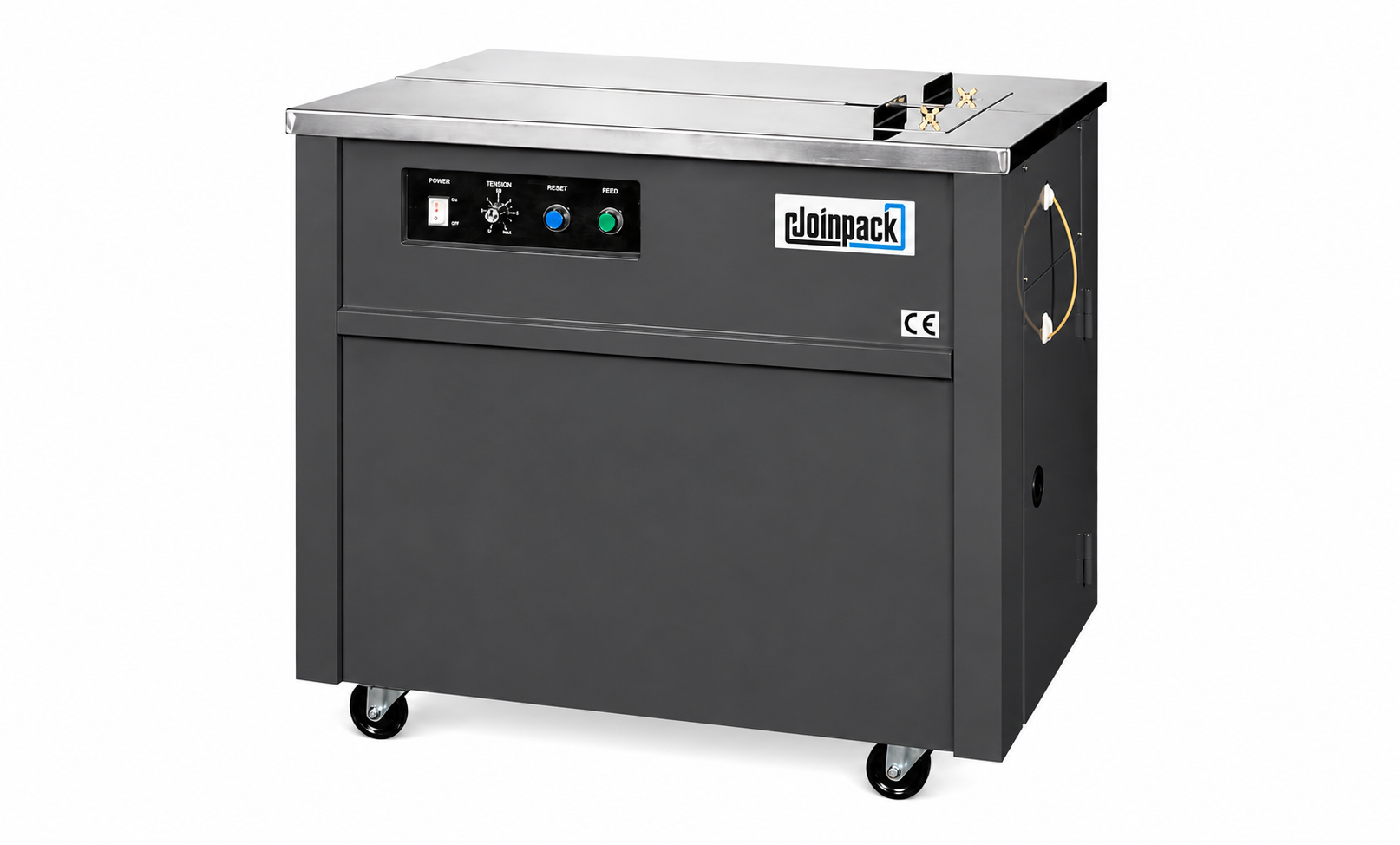

ES-103
Closed Cabinet (Electromagnetic Clutch)
- General industrial applications.
- Electromagnetic clutch with belt transit system.
Product detail
1. Features
- Hinged table top
- Mechanical tension control
- Motor shut off for energy saving
- Easy operation, less maintenance
- Reliable PCB and control components
2. Options
- Stainless steel #304 housing (ES-103M)
3. Specifications
Cycle Time
2.5 sec / strap
Tension Range
15~45kgs
Strap Width
9,12,15.5mm adjustable
Sealing Method
Heating element
Reel Inside Diameter
200, 230, 280mm specified
Power Supply
100/ 110/ 220/ 230/ 240V, 50/60Hz, 1PH
Table Height
780mm
Power Consumption
0.4kw
Machine Dimension
L902 x W575 x H780
Machine Weight
90 kgs
*Specification subject to change without notice
