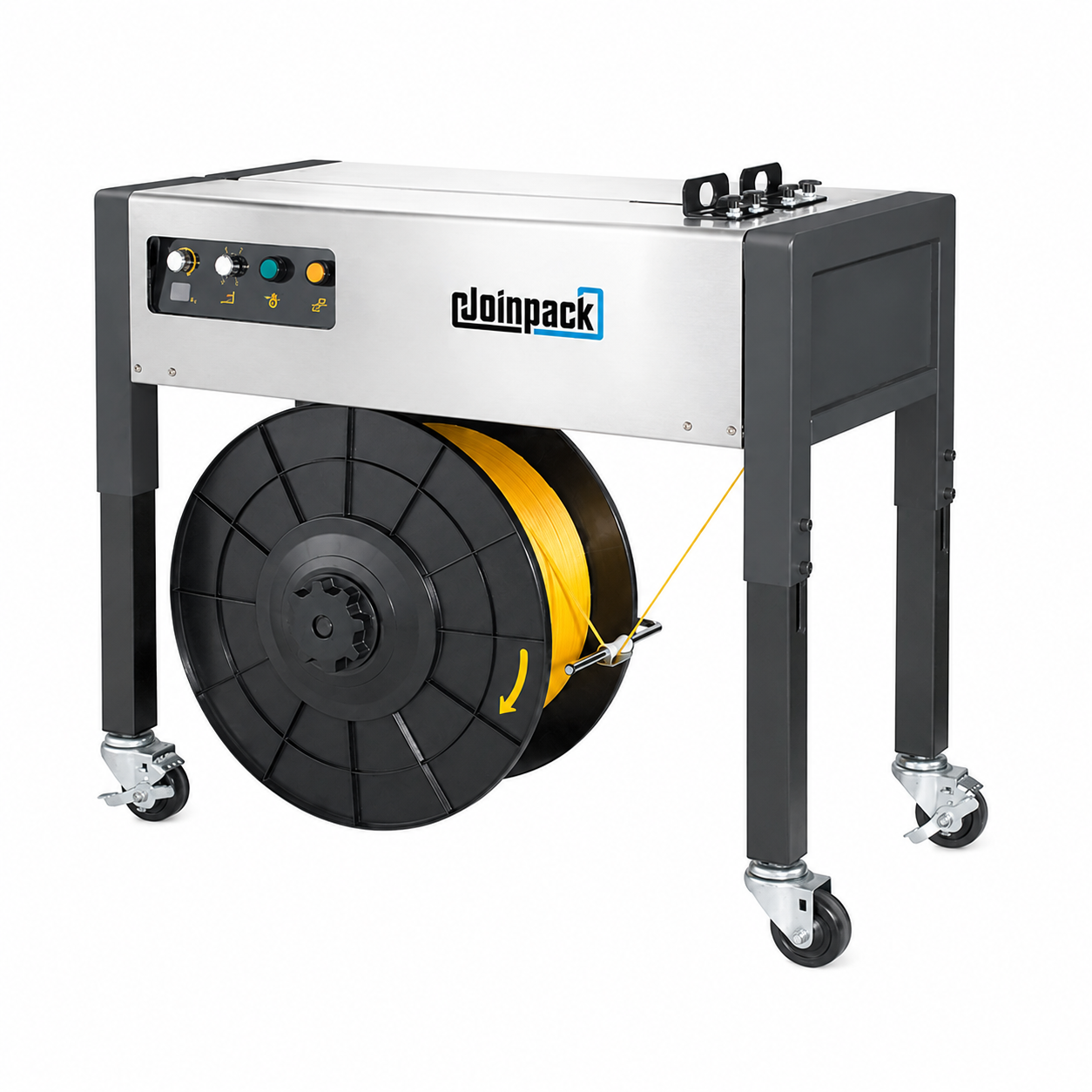

S-555N
High Performance, Equipped With Tension Indicator
- High performance equipped with digital indicator for electrical tension adjustment.
- Low voltage DC motor driven, perform fast speed and wide tension range at low noise.
- Available for narrow and thick strap.
- Table height adjustable.
- Legs dismountable for saving transportation and storage cost.
Product detail
1. Features
- Reliable tension system :

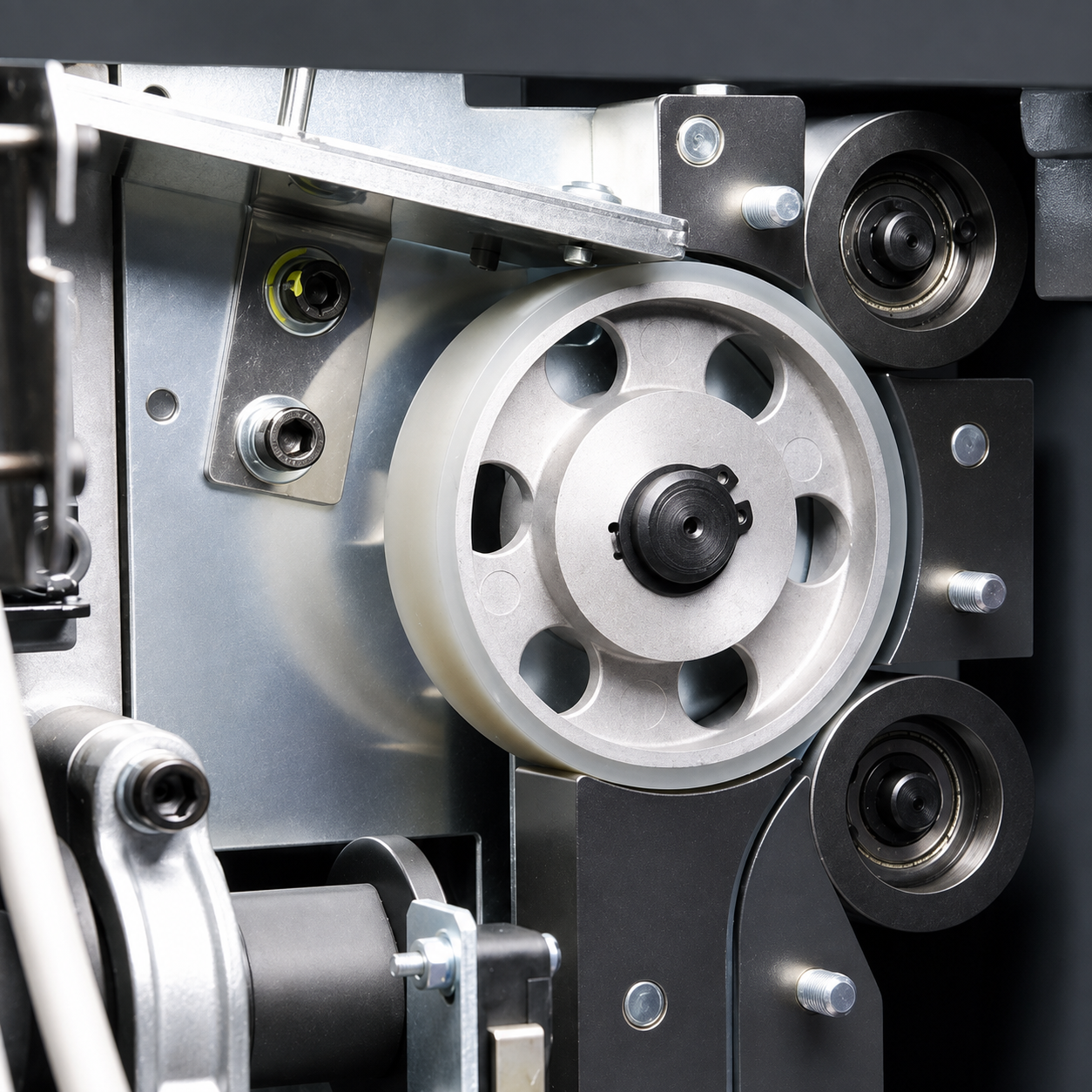

Big main roller driven by DC motor
Wide tension range from 3 to 40 KGs - Various strap thickness and width workable:
Width: 5mm to 15 mm
Thickness: 0.4 mm - Less mechanical parts, easy maintenance

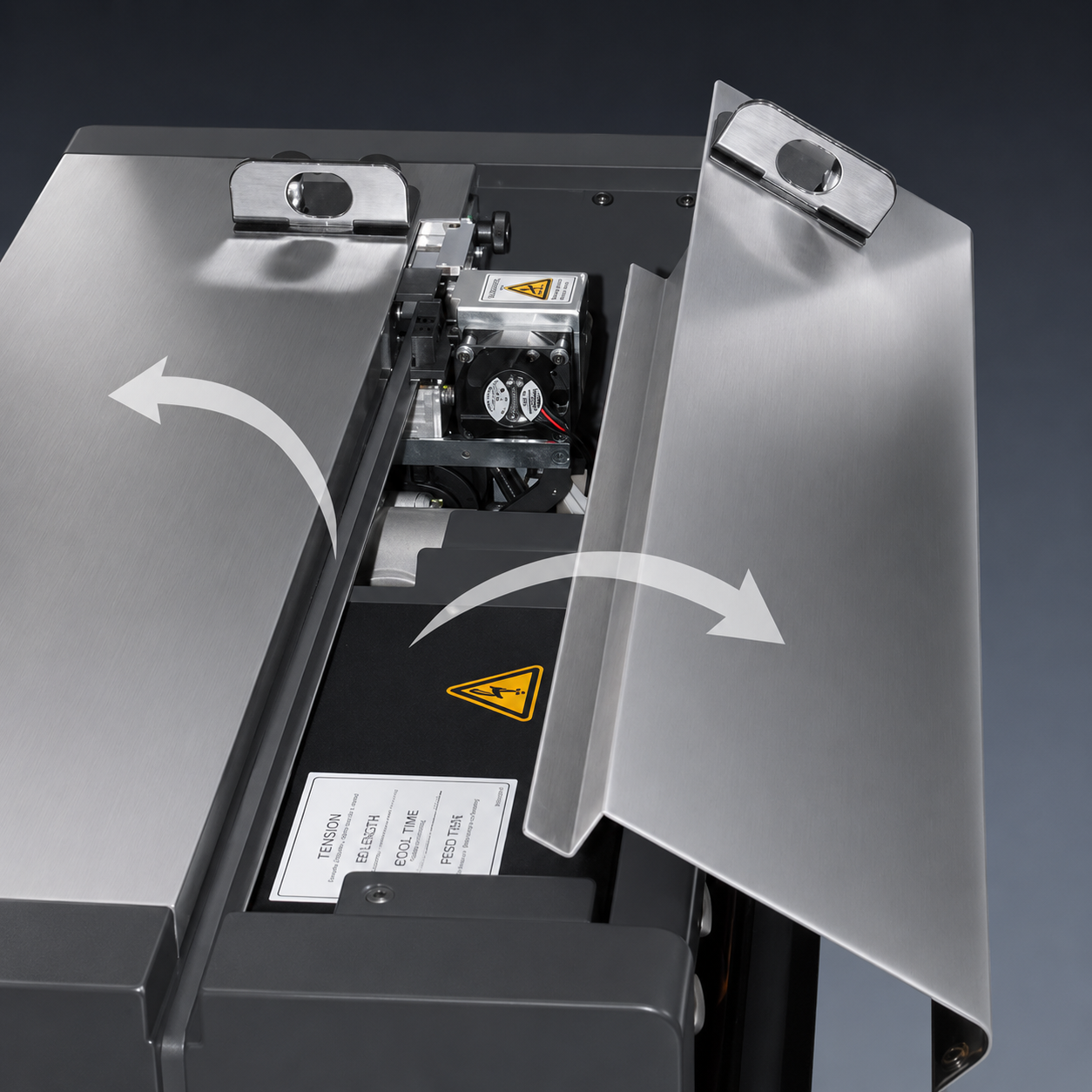

- Easy to access track guide and main roller
- Front side tension adjustment with indicator
- PCB: Plug and play system, easy replacement

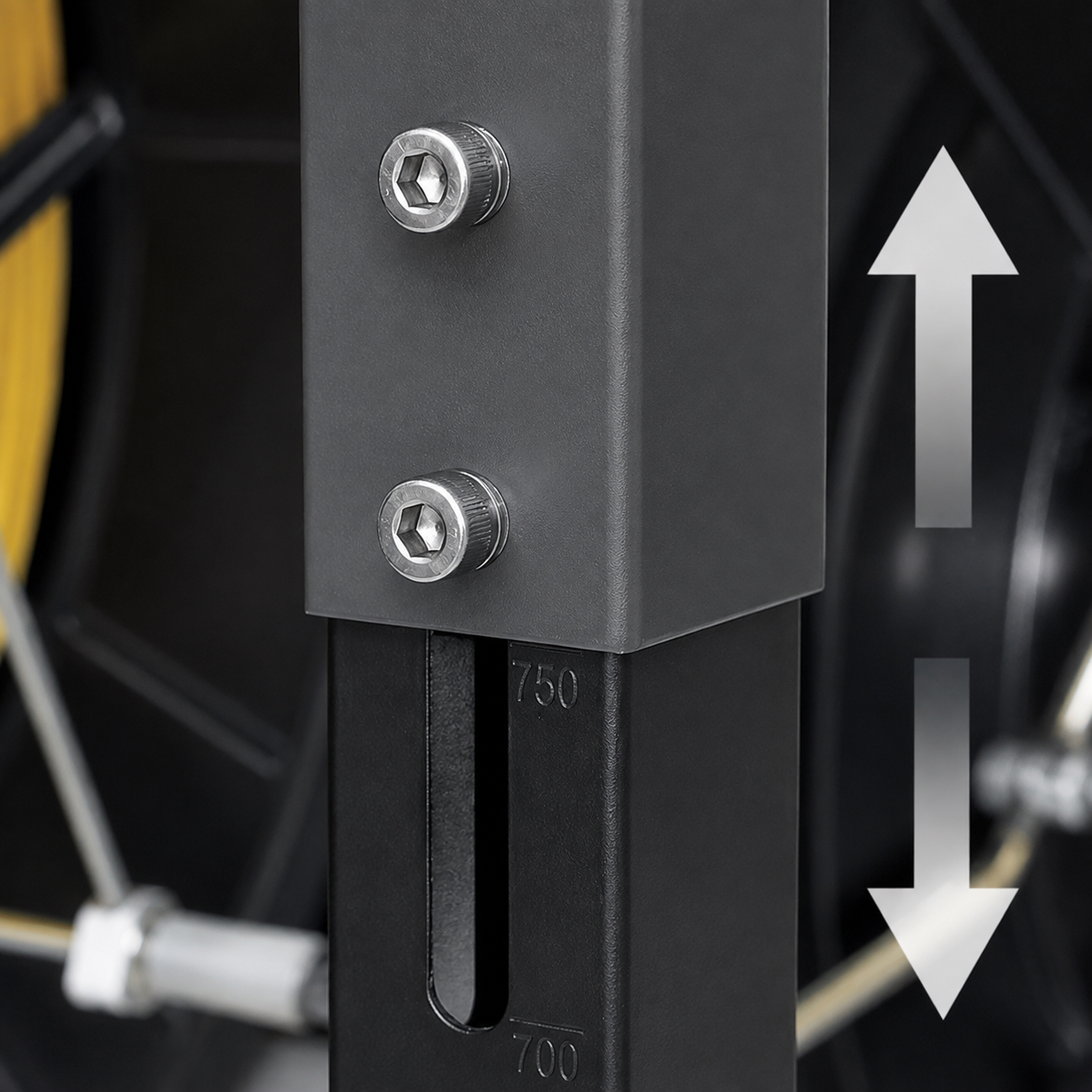

- Table height adjustable from 750mm to 830mm
3. Specifications
Cycle Time
2 sec./strap
Tension Range
3~40 kgs
Strap Width
5, 6, 9, 12, 15.5mm adjustable
Sealing Method
Heating element
Reel Inside Diameter
200, 230, 280mm specified
Power Supply
100/ 110/ 220/ 230/ 240V 50/60HZ, 1PH
Table Height
750~830mm adjustable
Power Consumption
0.45 kw
Machine Dimension
L845 x W430 x H750
Machine Weight
65kgs
*Specification subject to change without notice
