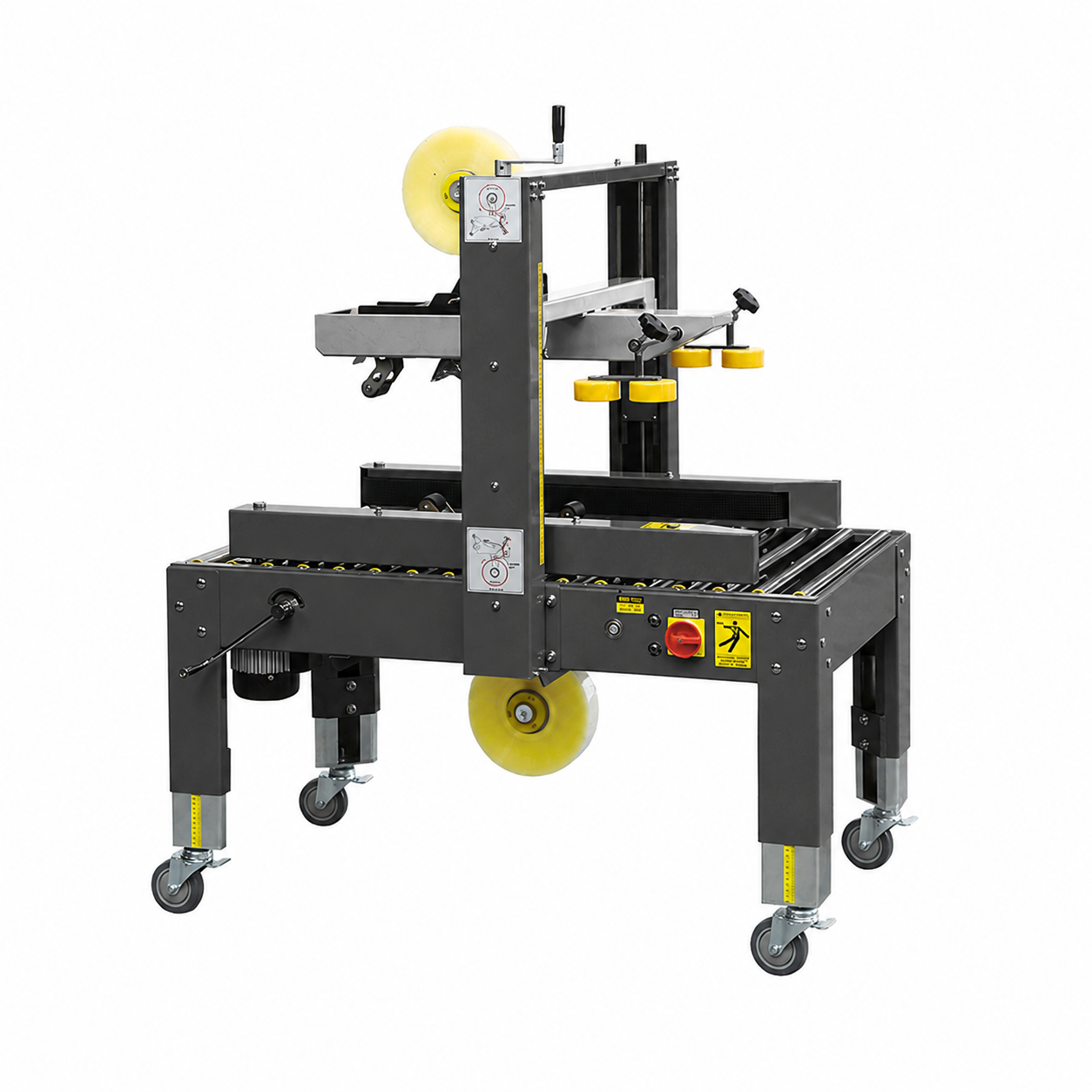

JP-501
Tape Sealing, Side Belt Driven
Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly. Side belt driven is suitable for narrow box.
Product detail
1. Features
- For random box
- Side belt driven
- Sturdy mast & frame
- Taping heads seal box smooth & accurate
- Table height adjustable from 570~770 mm
2. Options
- Extension roller table
- Stainless steel housing #304
- Width & height increase in size
- For heavy load, choose upper and side belt driven, JP-501T
3. Specifications
Sealing Size (L x W x Hmm)
Max. ∞ x 500 x 500 Min. 150 x 130 x 120 for 2”tape 150 x 155 x 120 for 3”tape
Tape Width
2” or 3” (specified)
Table Height (mm)
570~700
Belt Speed
20 M/per min. at 60Hz
Air Consumption
6 kgs/cm2
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm)
1250 x 960 x 1420
