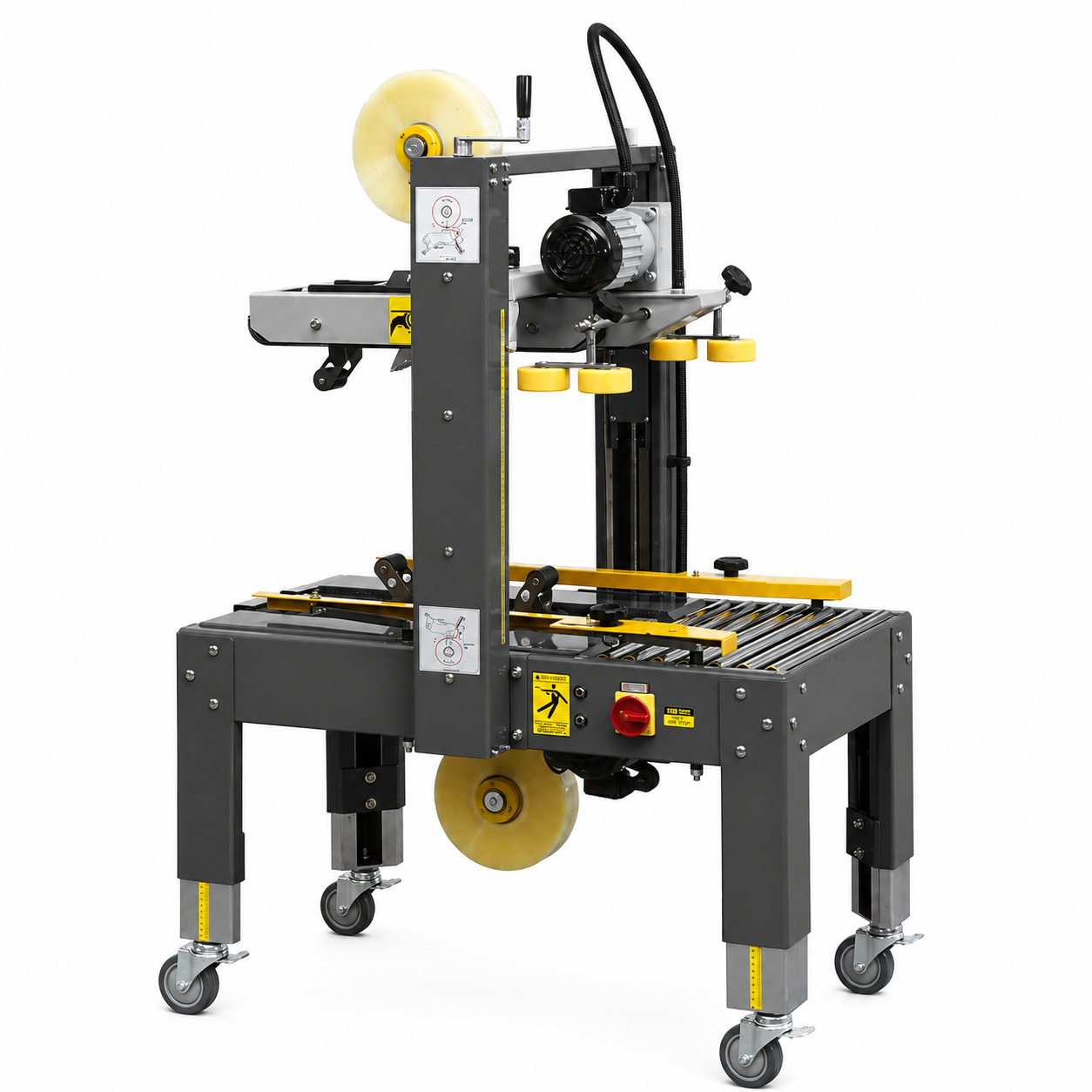

JP-502
Tape Sealing, Top & Bottom Belt Driven
Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly. Top & bottom belt driven is suitable for taller box.
Product detail
1. Features
- For uniform box
- Top & bottom belt driven
- Sturdy mast & frame
- Taping heads seal box smooth & accurate
- Dual side wheels help box close while taping
- Table height adjustable from 570~770 mm
2. Options
- Extension roller table
- Stainless steel housing #304
- Width & height increase in size
3. Specifications
Sealing Size (L x W x Hmm)
Max. ∞ x 500 x 500 Min. 150 x 180 x 110
Tape Width
2” or 3” (specified)
Table Height (mm)
570~700
Belt Speed
20 M/per min. at 60Hz
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm)
1105 x 785 x 1420
