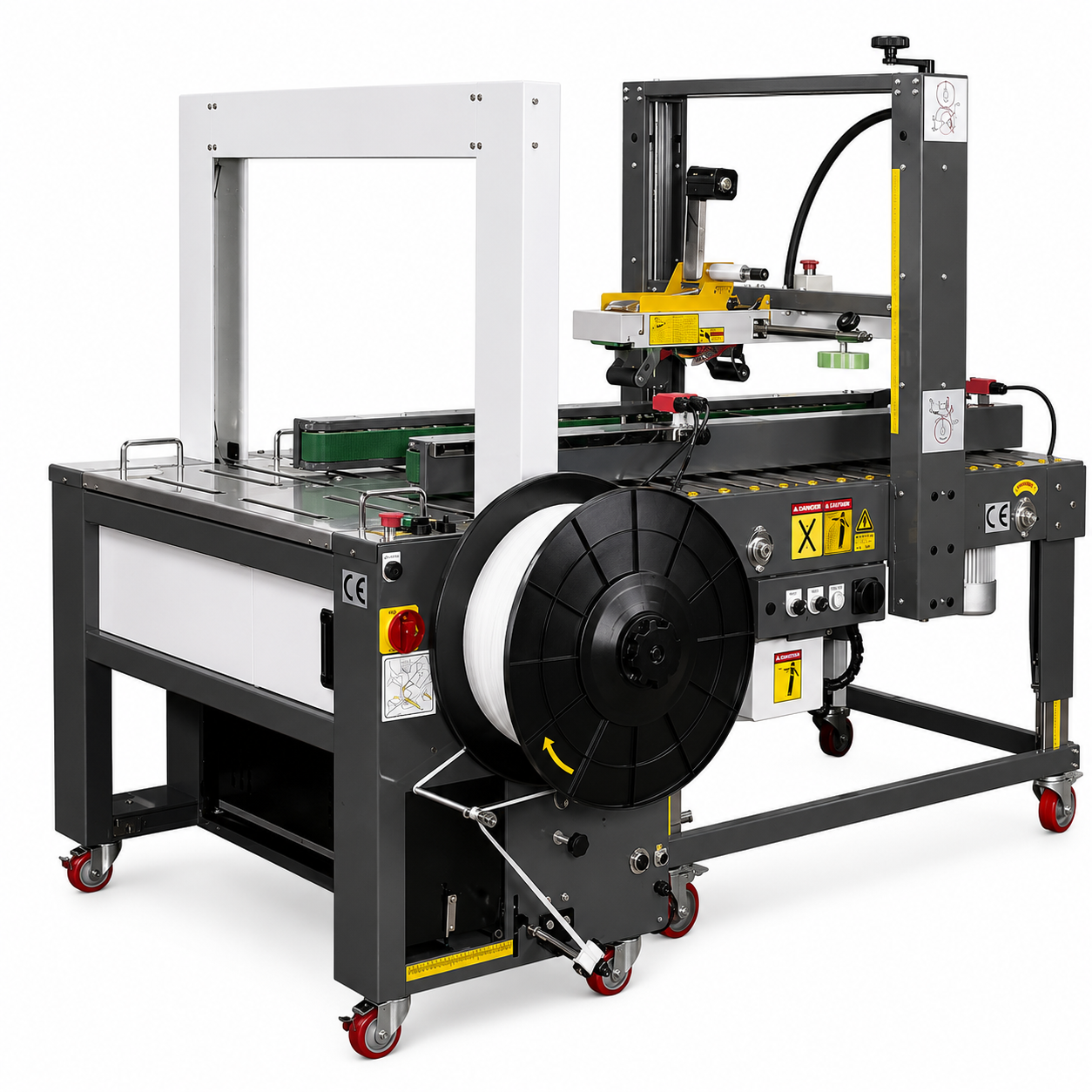

JP-501E + A93N
Tape Sealing & Strapping
Integrate JP-501E carton sealer with A-93N auto strapping machine to complete sealing & strapping together.
Straps quantity or position is controlled by two micro switches installed at carton sealer. Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly.
Straps quantity or position is controlled by two micro switches installed at carton sealer. Manually adjust width & height by two handles to cope with variety of boxes. Reliable taping heads apply tapes smoothly.
Product detail
1. Features
- For uniform box
- Side belt driven
- Sturdy mast & frame
- Taping heads seal box smooth & accurate
- Dual side wheels help box close while taping
- Run on 9, 12, 15 mm strap
- Digital regulator in PCB
- Auto loading system
- Short feeding system
- Looping ejector
- Coil end eject system
- Electronic tension control
3. Specifications
Sealing Size (L x W x Hmm)
Max. 1000 x 500 x 500 Min. 250 x 155 x 120
Tape Width
2” or 3” (specified)
Table Height (mm)
800
Belt Speed
20 M/per min. at 60Hz
Strap Width for A-93N
9,12,15 mm (specified)
Tension for A93N
15~70 kgs
Arch Size for A-93N (W x H mm)
850 x 600
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm)
JP-501 : 1710 x 960 x 1420 A-93N : 1440 x 600 x 1520
