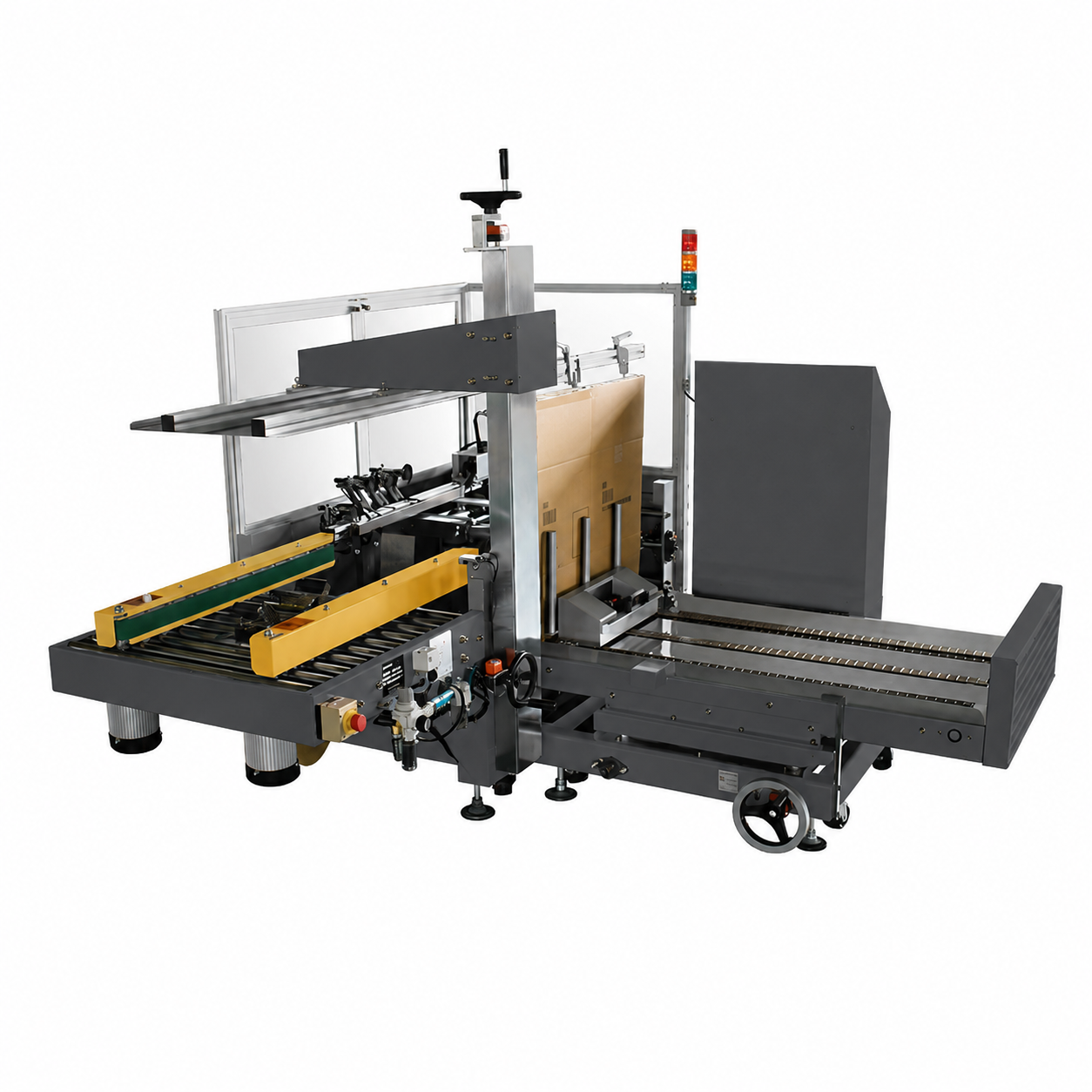

JP-505V
Box Opening, Folding & Bottom Sealing
Automatically box suction, forming, flaps folding, bottom tape sealing all in one.
Manually adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.
Manually adjust width & height to cope with variety of boxes. Reliable taping heads apply tapes smoothly. It can integrate with auto packaging system.
Product detail
1. Features
- Suction, form, flaps folded & bottom tape seal
- For uniform box
- Side belt driven
- Sturdy mast & frame
- PLC control, touch panel
- Taping heads seal box smooth & accurate
- Detect for tape cutting failure, low & no tape roll
- Easy to change boxes by handle with counter display
2. Options
- Safety fence
3. Specifications
Sealing Size (L x W x Hmm)
Max. 1000 x 500 x 500 Min. 250 x 155 x 120
Tape Width
2” or 3” (specified)
Table Height (mm)
620
Belt Speed
20 M/per min. at 60Hz
Air Consumption
6 kgs/cm2
Box in Magazine
90~100 boxes depend on box thickness
Capacity
8~12 boxes per min.
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V, 50/60Hz, 3PH
Layout Dimension (L x W x Hmm)
2310 x 2400 x 1800
