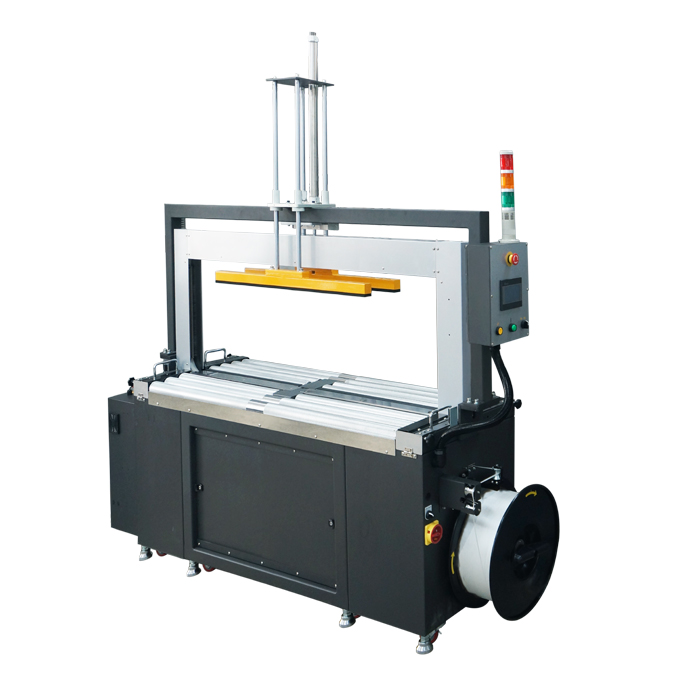

A-85NARP

Roller Driven Tabletop With Top Press

A-85NARP is designed for various in-line applications.
Top press helps compressing the bundle during strapping to get better tension.
A-85NARP can work with different strap widths, provide wide tension range as well as high strapping speed with AC motor driven.
Diversity of assist functions is all as standard equipped.

Download brochure Inquire Now

Product detail

1. Features

Top press
Roller driven
Looping ejector
Short feeding sensor
Coil end eject system
Waist auto loading system
Conveyor speed adjustable
Upstream and downstream interlock
Run on 5,6,9,12,15 mm strap (specified)
PLC control with HMI touch screen panel

2. Options

Stainless steel housing
Various arch sizes available

3. Specifications

Speed (straps / min)

40

Strap Width (mm)

5,6,9,12,15 specified

Tension Range for 5,6mm

3~30kgs

Tension Range for 9,12,15mm

5~70kgs

Standard Arch (W x H mm)

850 x 500

Motor

AC

Sealing Method

Heating element

Table Height (mm)

805

Power Supply

110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH

Power Consumption (kw)

1.2

Layout Dimension (L x W x Hmm)

1230 x 580 x 1430
