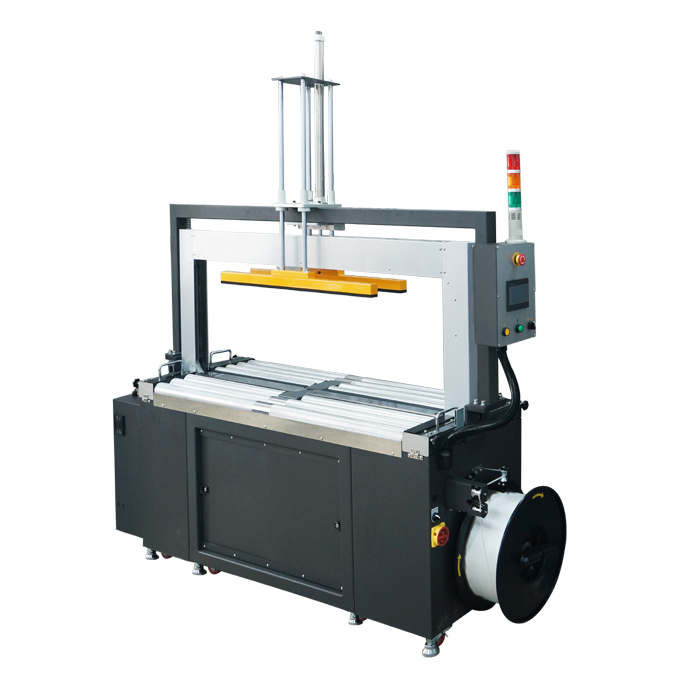

A-88NARP
Servo Motor Roller Driven Tabletop With Top Press
A-88NARP is designed for various in-line applications.
Top press helps compressing the bundle during strapping to get better tension.
A-88NARP can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven.
Top press helps compressing the bundle during strapping to get better tension.
A-88NARP can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven.
Product detail
1. Features
- Top press
- Roller driven
- PLC control with HMI touch screen panel
- Conveyor speed adjustable
- Upstream and downstream interlock
- Run on 5,6,9,12,15 mm strap (specified)
- Waist auto loading system
- Short feeding sensor
- Coil end eject system
- Looping ejector
2. Options
- Stainless steel housing
- Various arch sizes available
3. Specifications
Speed (straps / min)
60 up
Strap Width (mm)
5,6,9,12,15 specified
Tension Range for 5,6mm
3~30kgs
Tension Range for 9,12,15mm
5~70kgs
Standard Arch (W x H mm)
850 x 500
Motor
Servo
Sealing Method
Heating element
Table Height (mm)
805
Power Supply
110/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw)
1.2
Layout Dimension (L x W x Hmm)
1230 x 580 x 1430
